Ford Next‑Gen Ranger — XGO Tray, Canopy and Chassis-Mount Body
The Next-Gen Ford Ranger has quickly become the benchmark dual cab in Australia, in respects its over taken the ever popular Toyota Hilux. It’s powerful, refined, comfortable, and packed with technology that makes it a standout whether you’re towing, touring, or using it as a workhorse.
But with all that technology comes complexity. Owners are often hesitant about modifying their Ranger, particularly when it comes to removing the factory tub and fitting a tray, canopy, or service body. Sensors, cameras, wiring looms, radar systems, blind-spot monitoring and even the way the fuel filler is integrated — all raise questions about what happens when you make changes.
That’s where we come in. At Teralume Industries, we’ve engineered the XGO™ range of trays, canopies, and chassis-mount bodies specifically for vehicles like the Next-Gen Ranger. Our mission is simple: help you modify your Ranger without compromise.
The Challenge of Modern Vehicle Modifications
It’s no secret that modifying a modern ute is different to older platforms. In the past, pulling off a tub and throwing on a tray on was straightforward. Today, the Ranger’s advanced safety and driver-assist systems add layers of complexity.
Here are some of the most common concerns we hear from Ranger owners:
- Sensor relocation: Blind-spot monitoring, rear parking sensors, and radar modules can be affected if not relocated correctly.
- Fuel filler issues: The Ranger uses an OEM-specific filler and fuel cap design that doesn’t always adapt neatly into aftermarket trays and can damage the OE fuel tank with venting issues if not understood correctly.
- Cameras and lighting: Factory 360 cameras, tow-assist, and integrated lighting can be disrupted if not installed and rewired correctly.
- ADR compliance: Poorly executed modifications can risk roadworthiness and compliance and can also void your insurance!
- Warranty questions: Many owners fear modifications could impact their factory warranty. However, this is not the case.
We’ve built the XGO™ range to address these issues head-on — so you don’t need to. We've successfully completed many Next Gen Ranger conversions, including our own!
👉 Worried about sensors and tech? Talk to our fitment specialists before you start.
How Teralume Helps Next-Gen Ranger Owners
At Teralume Industries, we don’t just make trays, we offer so much more!
- Design and manufacture premium aluminium trays, canopies, and chassis-mount bodies.
- Engineer for OEM integration, meaning fuel fillers, sensors, cameras, and tail lights are considered from day one.
- Support our customers with expert advice and tailored builds to suit both work and touring.
With over 1,200 tray and canopy conversions across 15 ute platforms, our experience means we know exactly how to make your Ranger work seamlessly with a new body system.
👉 Ready to plan your build? Request a quote today and let’s get started.
Your Ranger, Your GVM
- How GVM works: GVM is the max your Ranger can legally weigh when loaded. Everything counts — passengers, fuel, accessories, canopy/tray, tools and gear.
- Payload impact: With a 3,350kg GVM and roughly 2,350–2,400kg kerb weight, you’re left with about 950–1,000kg payload. That figure includes people, fuel, and tow-ball download if you’re towing.
- Towing link: The weight applied to the tow ball directly reduces your payload (e.g. 300kg ball weight means 300kg less payload left for gear and accessories).
- Teralume design: Our trays and chassis-mount bodies are built light so you can carry more passengers, fuel, tools and camping gear without maxing out your GVM. We usually add 280-550KG and remove nearly 200kg when you're tub is removed.
- Upgrade options: We also work with certified GVM upgrades to give you extra load capacity if your build demands it.
Tray & Canopy vs. Chassis Mount Body
A tray and canopy setup is a modular system — the tray forms the flatbed platform, and the canopy bolts on top, giving owners flexibility to swap, remove, or upgrade components over time.
A chassis-mount body is different: it’s fixed directly to the chassis as a one-piece unit. That makes it lighter overall, ideal for people who don’t plan on removing their canopy and want to save weight without losing functionality.
There is no wrong and right, only what is more important to you. Both setups will allow the same weight carrying ability and fitout space for all of your accessories and power ups.

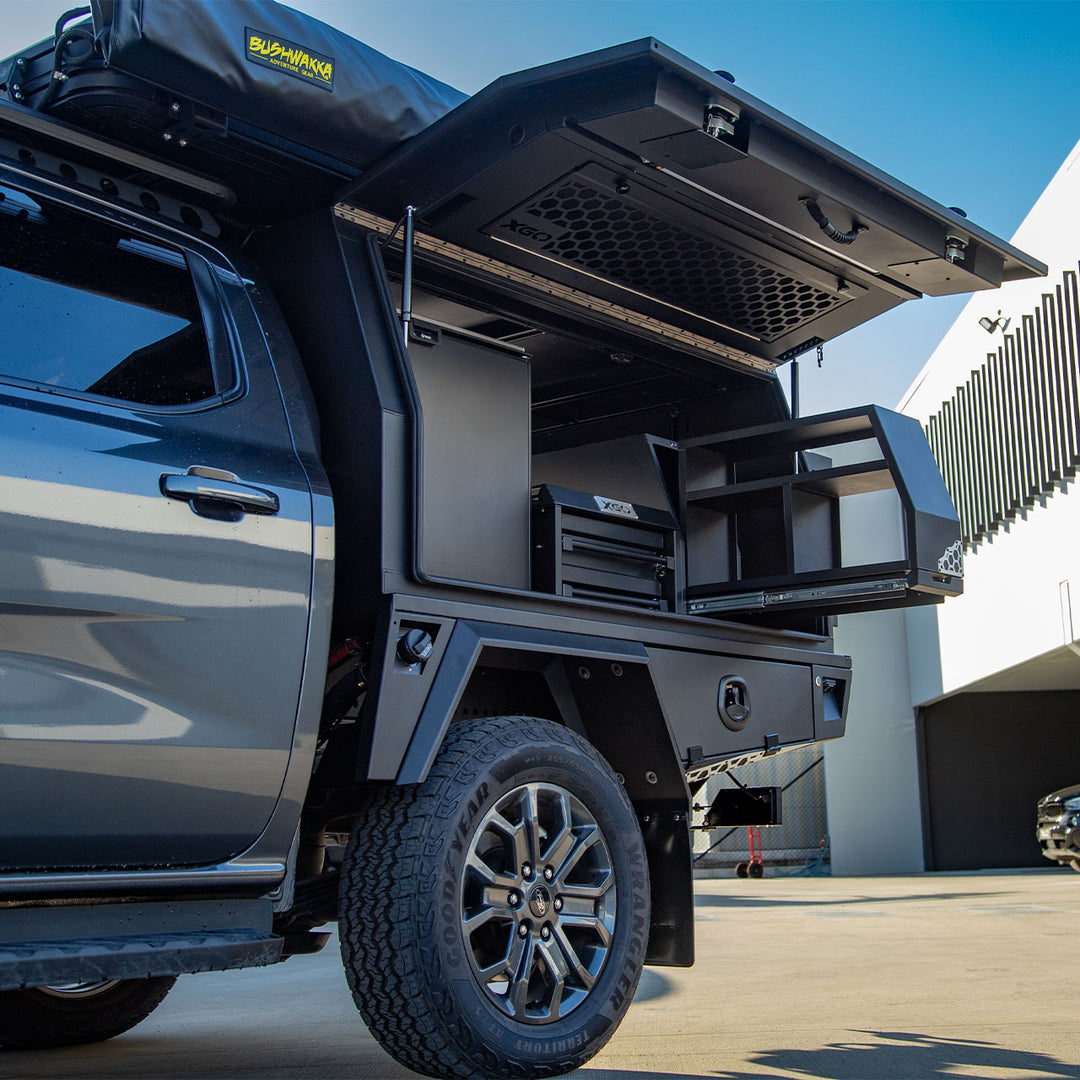

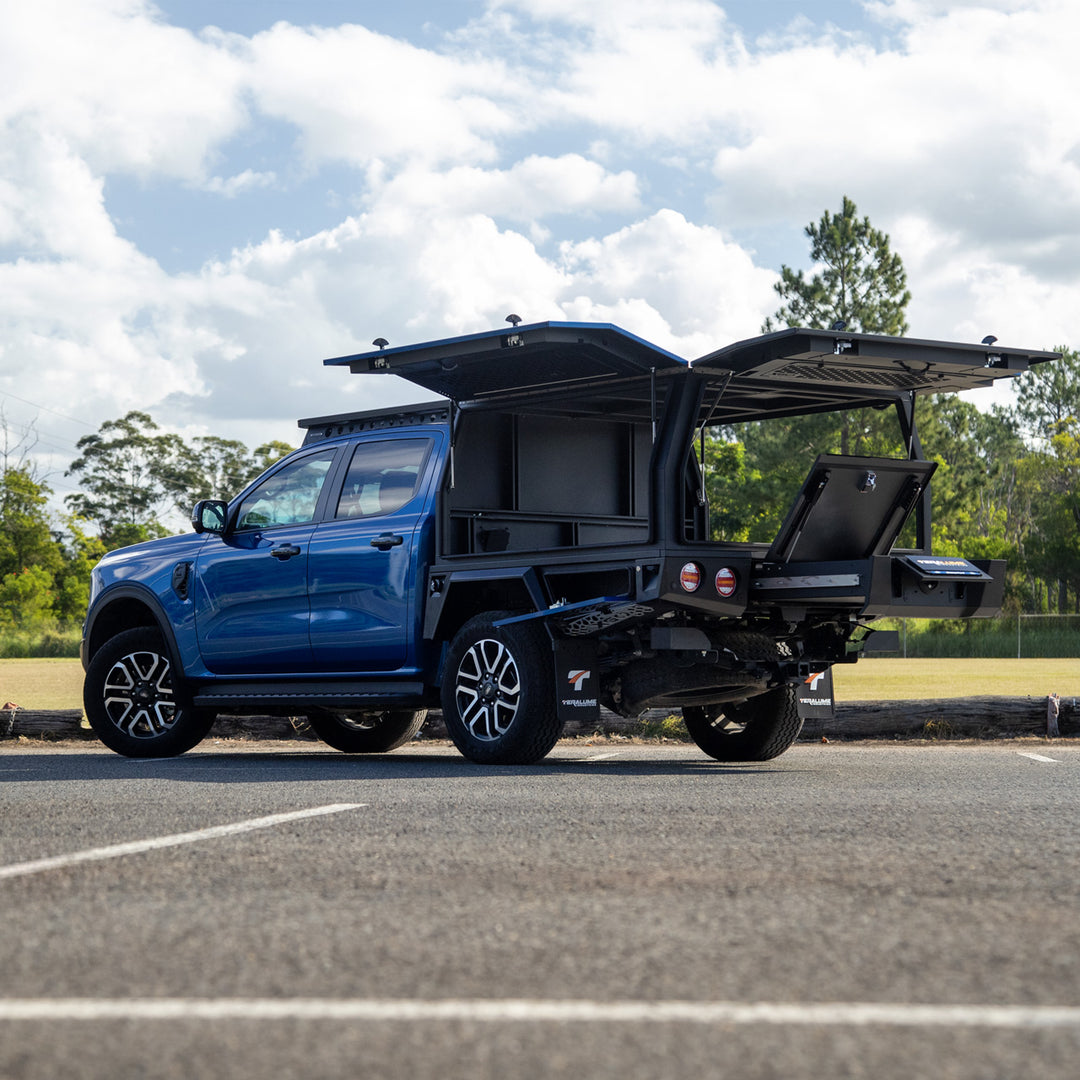

Chassis Mount Body
There are plenty of features of the chassis mount:
- Choice of 3 Models
- 2 & 3 Door Canopy Options
- 70 Litre Water Tank & Pump
- Rear Hidden Trundle Drawer - Twin Locked
- Tray Sides Included on 1400mm 2 Door
- Stunning Design - Increase Brand Presence
- Full Width Doors - Huge Opening Space
- Central Locking As Standard
- Full Braced & Tamper Proof Doors
- Industry FIRST Integrated Rear Zone Lighting
- Twin Integrated Side Boxes
- Fully Fabricated Uni-Strut Internal Frame
- 10-Year Structural Guarantee

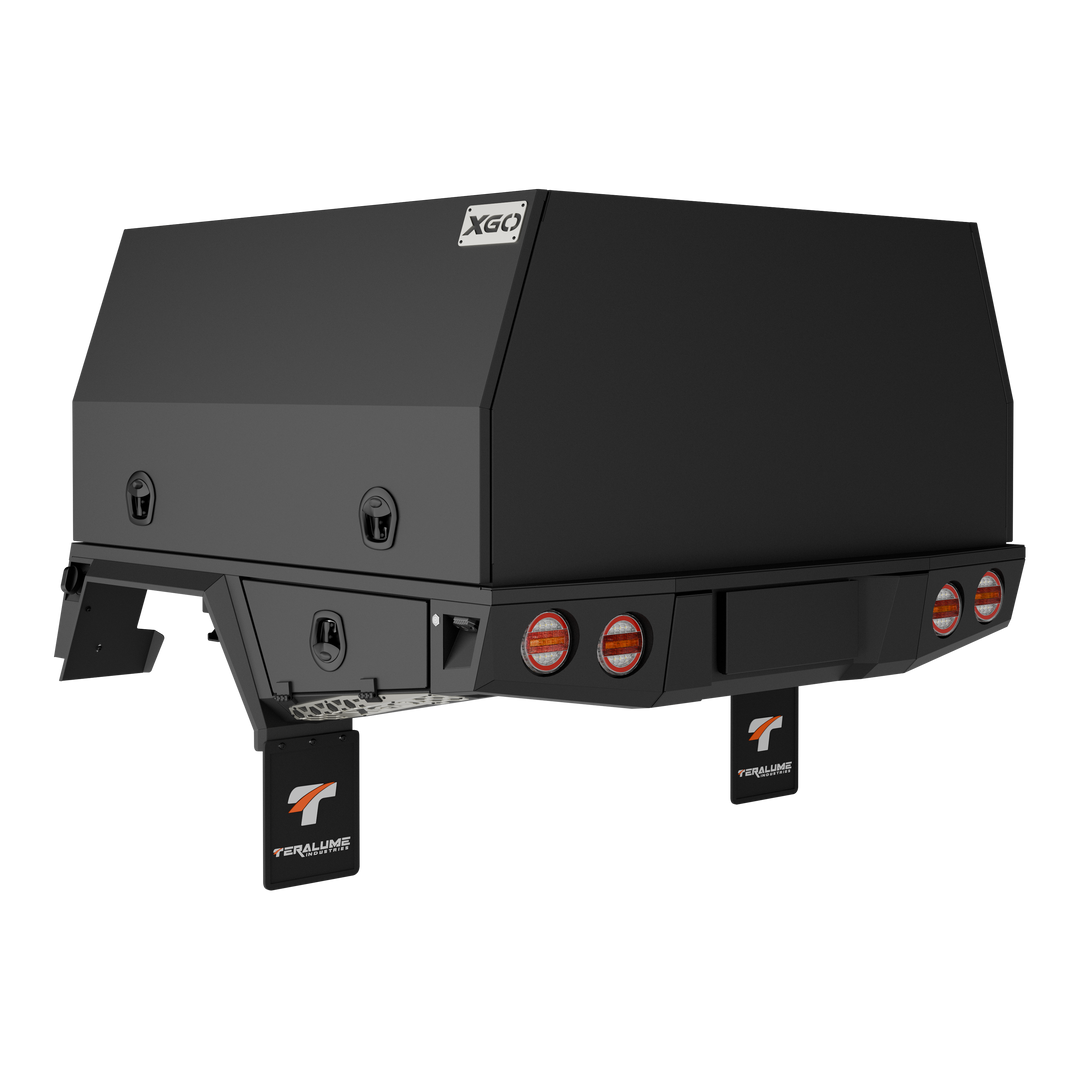

Ute Tray & Canopy
Our trays are fully featured. In fact, the option is the tray side boards, everything else is a standard inclusion!
- Built Tough With a 10 Year Structural Guarantee
- Brand New One-Piece Headboard Design
- Integrated Zone Lighting
- One-Piece 3mm Tray Floor
- Integrated Tie Down Points On Sides
- Lockable Pull-Out 1 Meter Trundle Drawer
- Lockable Under Tray Toolbox Drawers
- Integrated 100L Water Tank & Faucet
- Integrated Teralume Fuel Filler Design
- Twin Sequential LED Tail Lights
- 6mm Structural Frame
- Optional Tray Side Boards

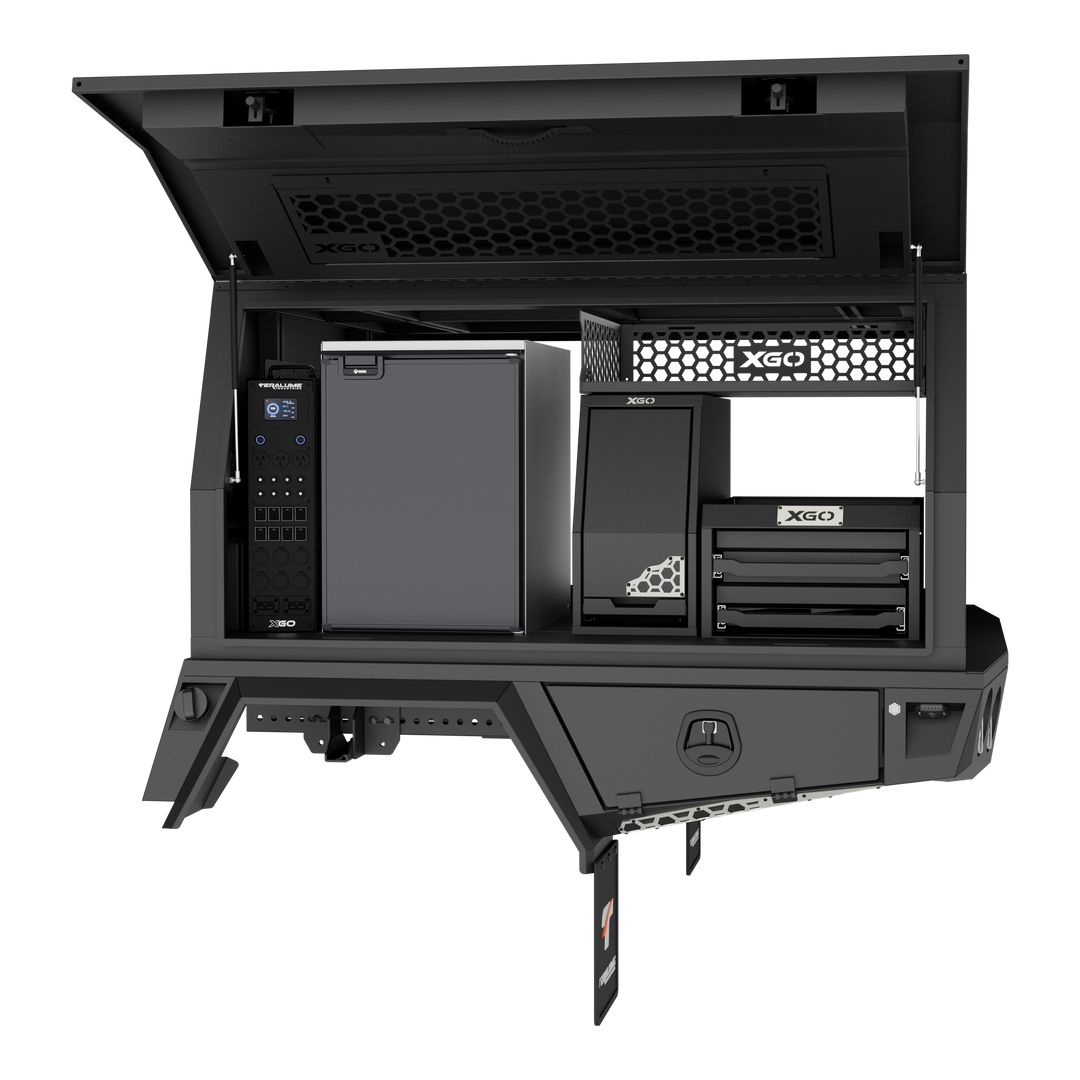

Internal Fitout
We offer a full range of fit-out options to maximise the usability, comfort and practicality of your vehicle. From premium lighting solutions to Bushman fridge setups, storage and pantry systems, everything is designed to make work and travel easier.
- Lighting – Choose from LED strip, surface-mount and ambient lighting to create the perfect internal and external setup.
- Refrigeration – Our go-to pick is the 85L Bushman upright fridges, trusted for reliability and efficiency.
- Drawers & Tables – Available in three sizes (500W, 780W and 1380W) to suit a wide range of builds and storage needs.
- Pantry Systems – Select from 280W or 500W pantry modules for convenient camp and travel organisation.
- Shelving – Overhead shelving units (500W and 800W) mount cleanly to the canopy ceiling to keep gear accessible yet out of the way.
Every option is designed around real-world use, so whether you’re setting up for work, touring or both, your build is ready for whatever comes next.
Power Solutions & 12V

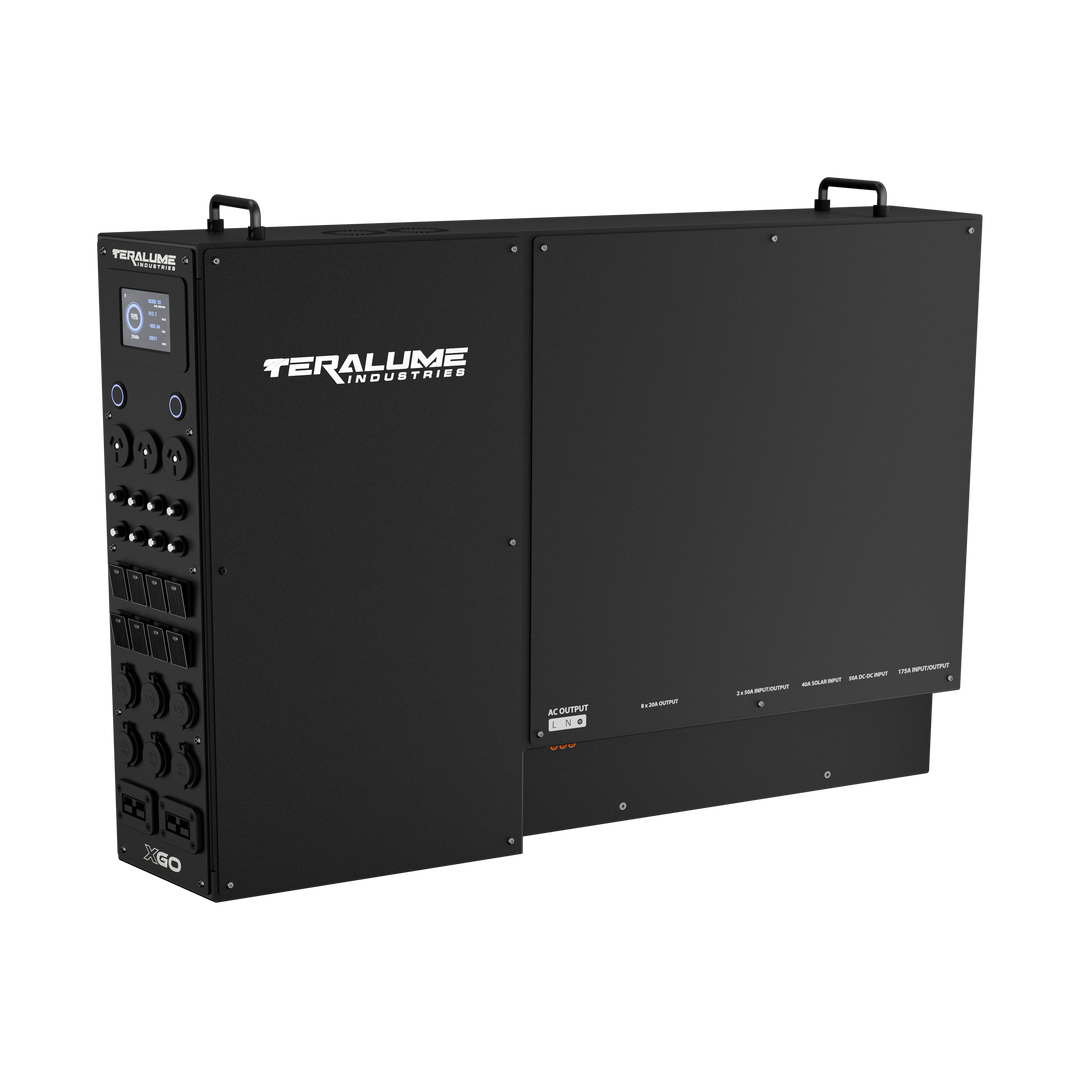

Teralume Industries Power Hub is a bit different to what you’re used to reading about.
It’s an all‑in‑one system where every core component lives in a single unit, which dramatically reduces install complexity and time. It is designed so you can move it to your next vehicle or remove it for sale with minimal fuss.
What's In The Power Hub:
- 3Kw Inverter
- 200/300Ah Lithium Battery
- 50-amp DC‑DC Charger
- 50-amp AC Charger
- 40-amp Solar Regulator
- 8x Fused Switches
- 6x Power Outlets
- 2x General Anderson Plugs
Yes, we’ll recommend the best Power Hub location for your layout, and no, you won’t be left with a mess of wiring.
External Fitout
An extensive range of external accessories are available to make sure you've got what you need, where you need it.
- Roof Rack Options: We've got a range of roof rails to mount roof top tents or you can option for the Rhino Rack ecosystem.

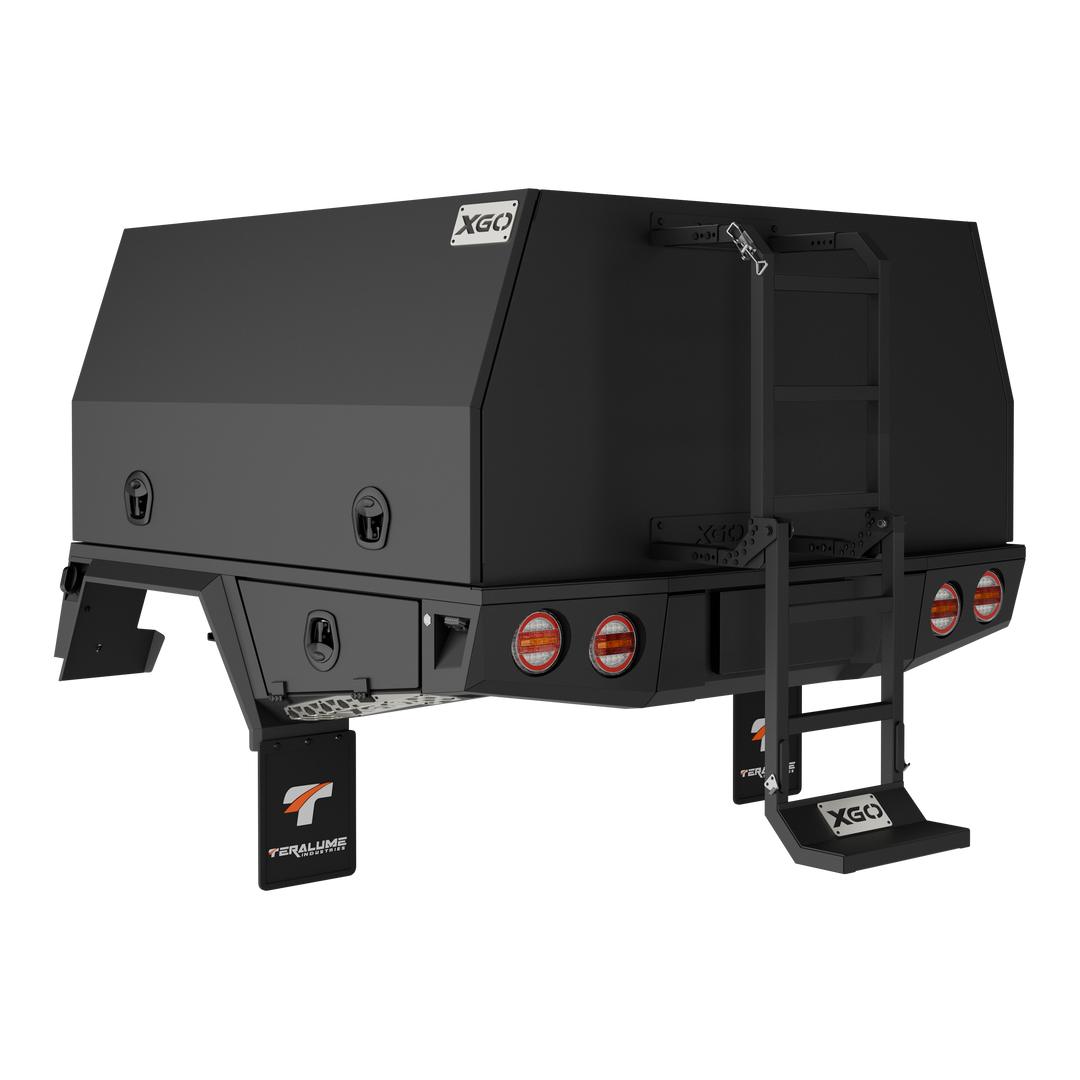

- Rear Mounted Accessories: Wheel holders, ladders, rear pantry boxes and jerry cans are options
- Solar & Power Options: We've got a range of 160-230w Roam Gear Solar Panels to keep your batteries charged
- Roof Top Tent & Awnings: The Bush Company range of tents and awnings are available to spec out the shade and sleeping quarters.
Wheels, Tyres & Suspension
One of the most important conversations we have with customers is around suspension and their wheel and tyres combination.
Suspensions:
Most factory suspension that vehicles are sold with is adequate for daily running around without weight. When we increase the weight, we strongly suggest that suspension is installed that suits the additional weight to keep the car safe, and well mannered.
We can offer:

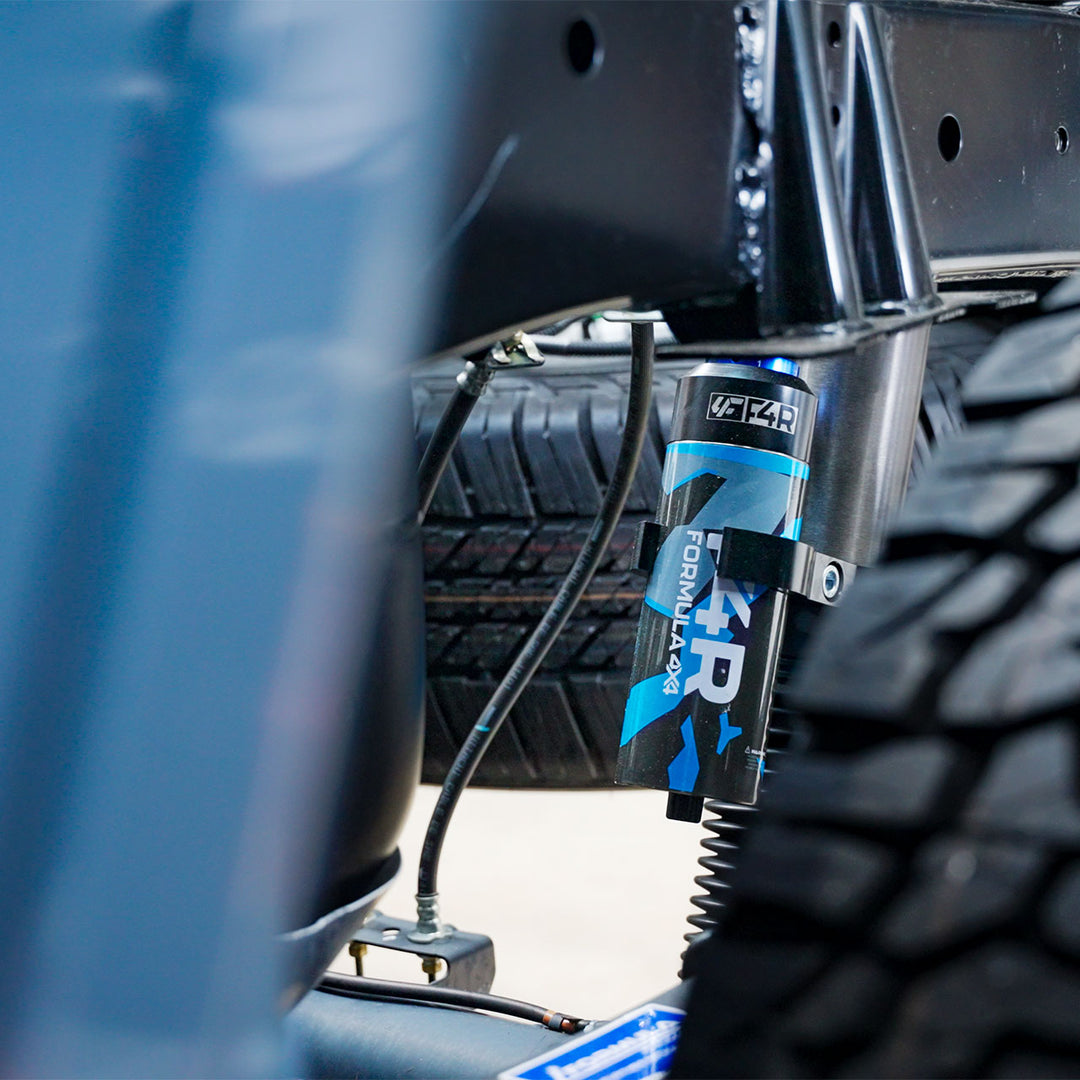

Fulcrum Formula and F4R Adjustable suspension kits, along with parabolic and traditional leaf springs. Tough Dog GVM upgrades along side standard duty lift kits.
Wheels & Tyres:
We offer ROH wheels and tyres to allow for a better suited fitment of wheel size, and offset and match it with stronger, more suitable tyres to increase durability offroad and allowing you to bag out the tyres when the going gets rough!
Why Choose The Teralume XGO™ Range
Choosing the right tray or canopy isn’t just about features — it’s about trust. Here’s why so many Ranger owners still choose Teralume:
- Experience: We've got a stack of experience with these vehicles. We complete over 600 conversions across 15 platforms every year!
- Platform-specific engineering: Our systems are designed to suit the Next-Gen Ranger, not just “any ute.”
- Peace of mind: Keep your factory tech and safety systems functioning as intended.
- Support: We back our products with a 10-year structural guarantee and aftersales support you can rely on.
- Australian Owned & Designed: We're an Australian company which design and engineer our products locally.
👉 Don’t compromise on your Ranger — speak to the Teralume team today.
Build It Right the First Time
The Next-Gen Ranger is one of the most advanced utes ever built — and it deserves more than a generic tray. Modifying it doesn’t need to mean losing functionality, fighting with sensors, or compromising on safety.
With the XGO™ range from Teralume Industries, you get a system that’s engineered to perform, built with precision, and designed to work with your Ranger, not against it.
👉 The Next-Gen Ranger deserves better. Get a Quote Today or Call Our Team to start your build.
FAQs
At Teralume Industries, we use high-grade 5052 aluminium for our canopies and Chassis mounts. It’s lightweight yet strong, won’t rust, and is built to handle Australia's harsh conditions.
If you need more accessibility, security, and a professional setup, our service bodies offer full-width doors and better ergonomics. But if you want flexibility, a modular canopy might be better.
It depends on your setup. If you're adding a canopy plus tools, camping gear, or water tanks, a GVM upgrade may be needed. We can advise on weight distribution and legal limits.
We offer lithium battery setups, solar panels, and power management systems to keep your fridge, lights, and accessories running no matter where you are.
Yes! Our canopies are designed to support roof loads like rooftop tents, solar panels, and other accessories - up to 300kg dynamic load. We ensure the structural integrity is there to handle extra weight.
Absolutely! Our fully welded aluminium canopies are designed for tough off-road conditions. With reinforced bracing and top-tier construction, they’re built to handle the toughest terrain with a 10 year structural guarantee.
It depends on your tray size and usage needs. We offer full-length, half-length, and custom options to ensure you get the best fit for your ute and lifestyle. You're welcome to give us a call to discuss!
Yes! We use premium automotive seals, TIG and laser welding to ensure your gear stays dry and dust-free, even in Australia’s toughest environments.
100%! We offer modular storage solutions, power systems, and lighting to tailor your Ranger build to your needs. Whether it’s for work or adventure, we can build it to suit you.
We focus on strength, innovation, and function. Features like our full-width doors, integrated false floor, channel design, intrusion resistant doors and 10 year structural guarantee set us apart from standard canopies.
Our aluminium canopies are much lighter than steel options—ranging from 110kg to 180kg depending on size and design. This helps with fuel efficiency and vehicle handling.
Lead times vary depending on demand, but we aim for 2-6 weeks. We ensure every canopy is assembled to our high standards before it leaves our workshop or gets installed at our fitment network
Our canopies start from just over $4,490 and go upwards depending on size, vehicle type. We focus on durability, security, and design innovation to ensure you get the best value for money and the very best product.
A good camping setup includes a roof rack, fridge slide, drawers, power system, and lighting. Our canopies can be fully customised with these features, ensuring you're ready for any adventure.
