Ford Next-Gen Ranger tray and canopy systems, built properly
The Next-Gen Ranger is a highly integrated vehicle. Sensors, driver assistance systems, fuel systems and electronics all need to be considered when modifying the vehicle properly.
At Teralume Industries, we design and install tray and canopy systems that work with the vehicle, not against it. Our XGO™ platform is engineered to integrate with modern utes so reliability, safety systems and long-term durability are maintained.
Whether the vehicle is being built for work, touring or a combination of both, the goal is the same: a platform that performs reliably and is built once, built properly.
Built for the Next-Gen Ranger platform
Modern Rangers are very different from earlier models. Electrical systems are more complex, driver assistance systems are sensitive to mounting and weight distribution, and poorly planned modifications can create ongoing issues.
Our approach is to design the tray, canopy and supporting systems as a complete package, considering vehicle weight, electrical integration, mounting points and real-world use before installation begins.
The result is a system that fits correctly, performs reliably and maintains the integrity of the vehicle.
This is a complete Ranger tray and canopy build, delivered properly.
You get a complete tray and canopy build for the Next-Gen Ranger, supplied and installed by Teralume Industries, designed around the XGO™ platform.
Built As One Integrated Package:
- XGO™ aluminium tray as the structural foundation of the build.
- Matched canopy configuration to suit your use case (touring, trade, or mixed use).
- Integrated storage and access designed for how you actually load and use the vehicle.
- Electrical integration planned into the build from the start (not added later as an afterthought).
- Correct mounting, fitment and finishing so the vehicle performs properly and stays reliable long term.
What You Avoid:
- Coordinating multiple suppliers and installers.
- Compatibility issues between components.
- Messy wiring and “add-on” installs that create problems later.
- A build that looks good but does not carry load or operate properly in real use.
The Result:
- A Ranger that is configured for your load and your application.
- A platform that is ready to work, tour, or do both from day one.
- One team accountable for the complete outcome
Tray & Canopy vs. Chassis Mount Body
A tray and canopy setup is a modular system — the tray forms the flatbed platform, and the canopy bolts on top, giving owners flexibility to swap, remove, or upgrade components over time.
A chassis-mount body is different: it’s fixed directly to the chassis as a one-piece unit. That makes it lighter overall, ideal for people who don’t plan on removing their canopy and want to save weight without losing functionality.
There is no wrong and right, only what is more important to you. Both setups will allow the same weight carrying ability and fitout space for all of your accessories and power ups.

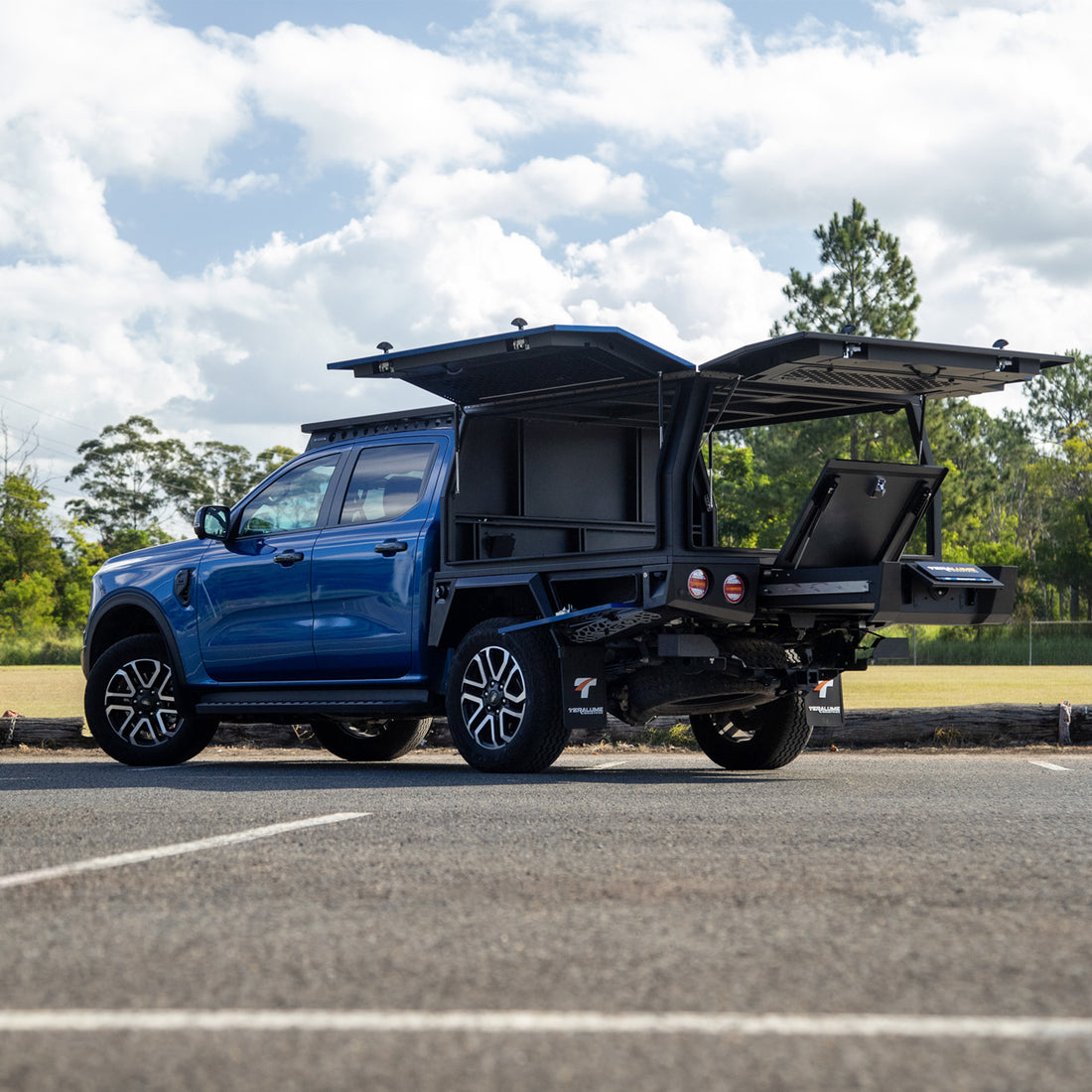

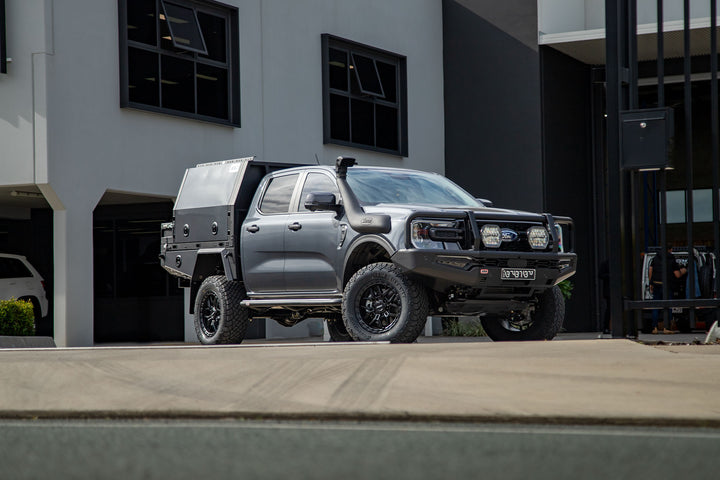

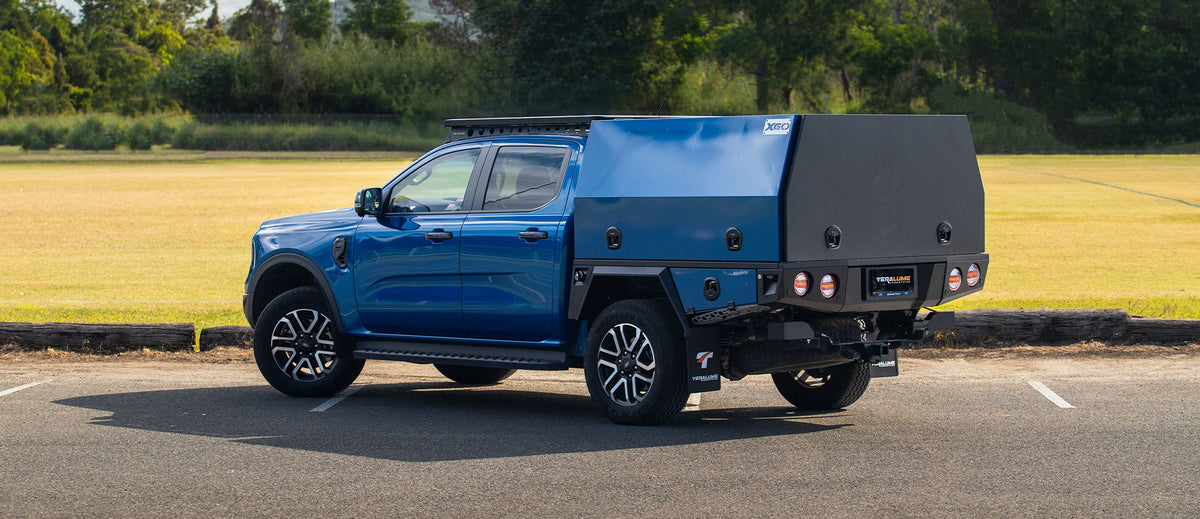

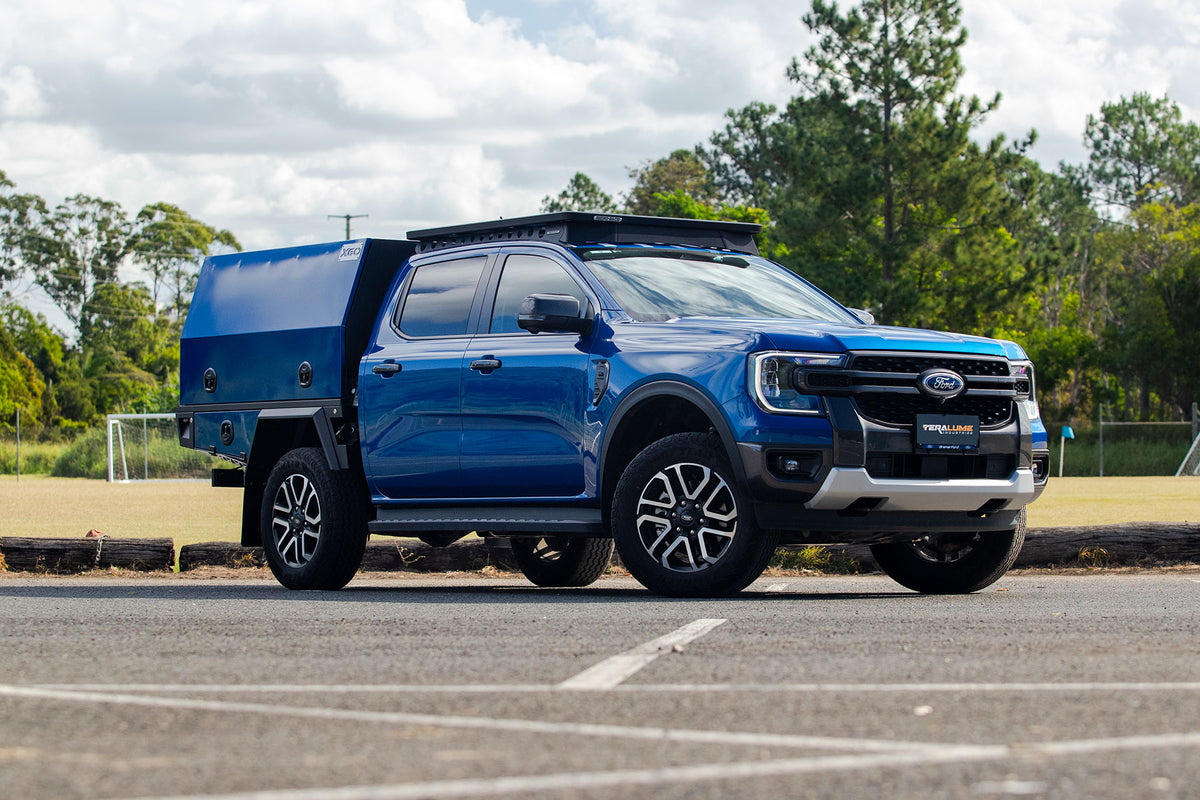

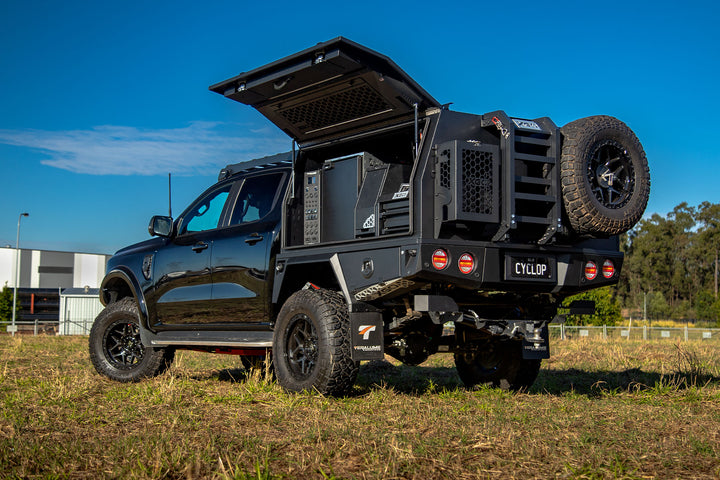

Chassis Mount Body
There are plenty of features of the chassis mount:
- Choice of 3 Models
- 2 & 3 Door Canopy Options
- 70 Litre Water Tank & Pump
- Rear Hidden Trundle Drawer - Twin Locked
- Tray Sides Included on 1400mm 2 Door
- Stunning Design - Increase Brand Presence
- Full Width Doors - Huge Opening Space
- Central Locking As Standard
- Full Braced & Tamper Proof Doors
- Industry FIRST Integrated Rear Zone Lighting
- Twin Integrated Side Boxes
- Fully Fabricated Uni-Strut Internal Frame
- 10-Year Structural Guarantee

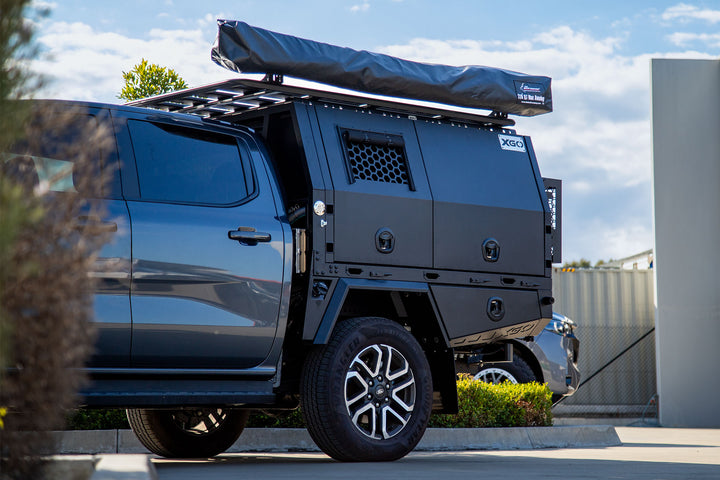

Ute Tray & Canopy
Our trays are fully featured. In fact, the option is the tray side boards, everything else is a standard inclusion!
- Built Tough With a 10 Year Structural Guarantee
- Brand New One-Piece Headboard Design
- Integrated Zone Lighting
- One-Piece 3mm Tray Floor
- Integrated Tie Down Points On Sides
- Lockable Pull-Out 1 Meter Trundle Drawer
- Lockable Under Tray Toolbox Drawers
- Integrated 100L Water Tank & Faucet
- Integrated Teralume Fuel Filler Design
- Twin Sequential LED Tail Lights
- 6mm Structural Frame
- Optional Tray Side Boards
Your Ranger, Your GVM
- How GVM works: GVM is the max your Ranger can legally weigh when loaded. Everything counts — passengers, fuel, accessories, canopy/tray, tools and gear.
- Payload impact: With a 3,350kg GVM and roughly 2,350–2,400kg kerb weight, you’re left with about 950–1,000kg payload. That figure includes people, fuel, and tow-ball download if you’re towing.
- Towing link: The weight applied to the tow ball directly reduces your payload (e.g. 300kg ball weight means 300kg less payload left for gear and accessories).
- Teralume design: Our trays and chassis-mount bodies are built light so you can carry more passengers, fuel, tools and camping gear without maxing out your GVM. We usually add 280-550KG and remove nearly 200kg when you're tub is removed.
- Upgrade options: We also work with certified GVM upgrades to give you extra load capacity if your build demands it.
Wheels, Tyres & Suspension
One of the most important conversations we have with customers is around suspension and their wheel and tyres combination.
Most factory suspension that vehicles are sold with is adequate for daily running around without weight. When we increase the weight, we strongly suggest that suspension is installed that suits the additional weight to keep the car safe, and well mannered.
Suspensions:
Fulcrum Formula and F4R Adjustable suspension kits, along with parabolic and traditional leaf springs. Tough Dog GVM upgrades along side standard duty lift kits.
Wheels & Tyres:
We offer ROH wheels and tyres to allow for a better suited fitment of wheel size, and offset and match it with stronger, more suitable tyres to increase durability offroad and allowing you to bag out the tyres when the going gets rough!
Internal Fitout
We offer a full range of fit-out options to maximise the usability, comfort and practicality of your vehicle. From premium lighting solutions to Bushman fridge setups, storage and pantry systems, everything is designed to make work and travel easier.
- Lighting – Choose from LED strip, surface-mount and ambient lighting to create the perfect internal and external setup.
- Refrigeration – Our go-to pick is the 85L Bushman upright fridges, trusted for reliability and efficiency.
- Drawers & Tables – Available in three sizes (500W, 780W and 1380W) to suit a wide range of builds and storage needs.
- Pantry Systems – Select from 280W or 500W pantry modules for convenient camp and travel organisation.
- Shelving – Overhead shelving units (500W and 800W) mount cleanly to the canopy ceiling to keep gear accessible yet out of the way.
Every option is designed around real-world use, so whether you’re setting up for work, touring or both, your build is ready for whatever comes next.
Power Solutions & 12V
Teralume Industries Power Hub is a bit different to what you’re used to reading about.
It’s an all‑in‑one system where every core component lives in a single unit, which dramatically reduces install complexity and time. It is designed so you can move it to your next vehicle or remove it for sale with minimal fuss.
What's In The Power Hub:
- 3Kw Inverter
- 200/300Ah Lithium Battery
- 50-amp DC‑DC Charger
- 50-amp AC Charger
- 40-amp Solar Regulator
- 8x Fused Switches
- 6x Power Outlets
- 2x General Anderson Plugs
Yes, we’ll recommend the best Power Hub location for your layout, and no, you won’t be left with a mess of wiring.
External Fitout
An extensive range of external accessories are available to make sure you've got what you need, where you need it.
- Roof Rack Options: We've got a range of roof rails to mount roof top tents or you can option for the Rhino Rack ecosystem.
- Rear Mounted Accessories: Wheel holders, ladders, rear pantry boxes and jerry cans are options
- Solar & Power Options: We've got a range of 160-230w Roam Gear Solar Panels to keep your batteries charged
- Roof Top Tent & Awnings: The Bush Company range of tents and awnings are available to spec out the shade and sleeping quarters.
Why Choose The Teralume XGO™ Range
Choosing the right tray or canopy isn’t just about features — it’s about trust. Here’s why so many Ranger owners still choose Teralume:
- Experience: We've got a stack of experience with these vehicles. We complete over 600 conversions across 15 platforms every year!
- Platform-specific engineering: Our systems are designed to suit the Next-Gen Ranger, not just “any ute.”
- Peace of mind: Keep your factory tech and safety systems functioning as intended.
- Support: We back our products with a 10-year structural guarantee and after sales support you can rely on.
- Australian Owned & Designed: We're an Australian company which design and engineer our products locally.
Build It Right the First Time
The Next-Gen Ranger is one of the most advanced utes ever built — and it deserves more than a generic tray. Modifying it doesn’t need to mean losing functionality, fighting with sensors, or compromising on safety.
With the XGO™ range from Teralume Industries, you get a system that’s engineered to perform, built with precision, and designed to work with your Ranger, not against it.
FAQs
At Teralume Industries, we use high-grade 5052 aluminium for our canopies and Chassis mounts. It’s lightweight yet strong, won’t rust, and is built to handle Australia's harsh conditions.
If you need more accessibility, security, and a professional setup, our service bodies offer full-width doors and better ergonomics. But if you want flexibility, a modular canopy might be better.
It depends on your setup. If you're adding a canopy plus tools, camping gear, or water tanks, a GVM upgrade may be needed. We can advise on weight distribution and legal limits.
We offer lithium battery setups, solar panels, and power management systems to keep your fridge, lights, and accessories running no matter where you are.
Yes! Our canopies are designed to support roof loads like rooftop tents, solar panels, and other accessories - up to 300kg dynamic load. We ensure the structural integrity is there to handle extra weight.
Absolutely! Our fully welded aluminium canopies are designed for tough off-road conditions. With reinforced bracing and top-tier construction, they’re built to handle the toughest terrain with a 10 year structural guarantee.
It depends on your tray size and usage needs. We offer full-length, half-length, and custom options to ensure you get the best fit for your ute and lifestyle. You're welcome to give us a call to discuss!
Yes! We use premium automotive seals, TIG and laser welding to ensure your gear stays dry and dust-free, even in Australia’s toughest environments.
100%! We offer modular storage solutions, power systems, and lighting to tailor your Ranger build to your needs. Whether it’s for work or adventure, we can build it to suit you.
We focus on strength, innovation, and function. Features like our full-width doors, integrated false floor, channel design, intrusion resistant doors and 10 year structural guarantee set us apart from standard canopies.
Our aluminium canopies are much lighter than steel options—ranging from 110kg to 180kg depending on size and design. This helps with fuel efficiency and vehicle handling.
Lead times vary depending on demand, but we aim for 2-6 weeks. We ensure every canopy is assembled to our high standards before it leaves our workshop or gets installed at our fitment network
Our canopies start from just over $4,490 and go upwards depending on size, vehicle type. We focus on durability, security, and design innovation to ensure you get the best value for money and the very best product.
A good camping setup includes a roof rack, fridge slide, drawers, power system, and lighting. Our canopies can be fully customised with these features, ensuring you're ready for any adventure.
