100cm X-Strip Canopy Lighting Kit
100CM-XSTRIP-LIGHTING-KIT$309.00$355.60Save $46.60BACKORDER
Tax included. Shipping calculated at checkout.
Two 100cm GEN2 lights, the splitter and every cable a canopy needs, in one box.
- Two 100cm GEN2 lights: white, amber or both together, dimmed from the light
- The fused battery cable, a 1 to 2 way splitter and three extensions, every one X-Range and fully terminated
- Plugs together: nothing to cut, crimp or solder
- 5-year warranty on the lights

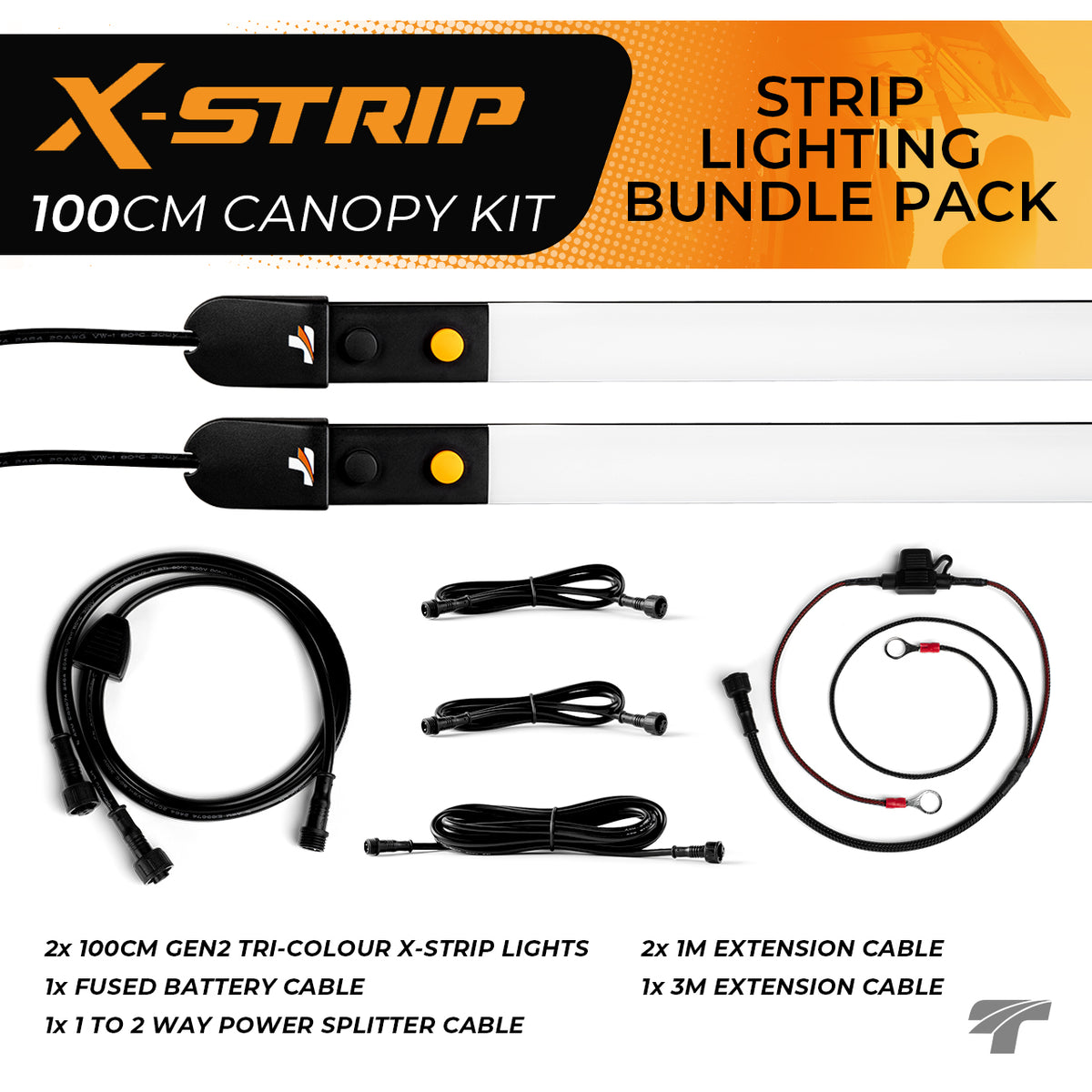

| QTY | ITEM | DETAILS |
|---|---|---|
| 2 × | 100cm GEN2 Tri-Colour X-Strip Light | 5000K, 4300K & 3000K, dimmed from the light |
| 1 × | 12V Battery Power Cable | Fused, from the battery to the kit |
| 1 × | 1 to 2 Way Power Splitter | Runs both lights off the one cable |
| 2 × | 1 m Power Extension | X-Range, fully terminated |
| 1 × | 3 m Power Extension | X-Range, fully terminated |
THE LIGHTS
TWO LIGHTS AND WHAT THEY DO
Dimmed from the light
Hold the button on the light to dim it, from a glow to full output. No controller, nothing extra to wire.
Three colours in one light
5000K white to work by, 3000K amber for camp, and both together for a warm 4300K.
Sealed to IP66
Waterproof and sealed, with a diffused cover over the LEDs.
Safe on a start battery
The 100cm light draws 1.70 A at 12 V with both colours on.
MOUNTS AND CABLES
COMPLETE THE FIT
GEN2 X-Strip Magnetic Clip Mount, PairFits a GEN2 light to any magnetic surface$9.95IN STOCK
GEN2 X-Strip Screw-In Clip Mount, PairHolds a GEN2 light to any solid surface$9.95IN STOCK
GEN2 X-Strip Pole Clip Mount, PairFits a GEN2 light to a 20 to 28 mm tube$9.95IN STOCK
X-Range 5 m Extension CableFully terminated, for X1 and X-Strip lights$16.95IN STOCKWHAT OWNERS SAY
OWNERS IN THEIR OWN WORDS
SPECIFICATIONS
THE DETAILS IN FULL
SPECIFICATIONS, PER LIGHT
- Length
- 1030 mm overall, 23 mm wide, 17 mm high
- Colours
- 5000K white, 4300K warm white & 3000K amber
- Dimming
- Hold the button for each colour
- Input
- 12 V, from 9 to 15 V DC
- Current draw
- 1.70 A at 12 V, white & amber on
- Output
- 1280 lm white, 965 lm amber, 1480 lm both
- LEDs
- 5050 high CRI
- Sealing
- IP66
- Cable
- 1 m, with the sealed X-Range plug & a bare tail
- Mounting
- 3M adhesive backing, three 20 mm self-tapping screws & a PH2 bit
- Warranty
- 5 years from the date of purchase
FITTING IT YOURSELF
Press the button once to turn the light on and again to turn it off. Hold it to dim or brighten, and let go at the level you want. The two buttons sit at the end of the light, one for white and one for amber, and both are waterproof.
Stick the light on with the 3M backing, screw it down with the screws in the box, or both. The 1 m cable ends in the X-Range plug, so it runs to the battery cable, an extension or a splitter, and you can leave the buttons on and switch the light from outside it.
QUESTIONS
- Will an external dimmer work?
- No. External dimmers are not compatible with the dimmable range; each light dims from its own buttons.
- Is it safe on a start battery?
- Yes. The draw is low: a 100cm light takes 1.70 A at 12 V with both colours on.
