Brendale, North Brisbane

THE BASICSSHOULDN’TBE OPTIONAL.

Aluminium tray and canopy systems, engineered to your platform and fitted at our own workshop in Brendale. Water, storage, lighting and hardware already in the price.

Find My Vehicle Get Your Quote Now

20 minutes north of the CBD. Come and see one before you buy.

10Year

Structural guarantee

Structure, mounting and fitment. Not twelve months and not just the paint.

See the detail

5.0

Google Reviews

Verified reviews from touring, trade and fleet customers.

See the detail

10Inclusions

Included as standard

Water, storage, lighting and hardware are in the price, not quoted as extras.

See the detail

25min

From the Brisbane CBD

Come and open the doors on a finished one before you commit.

See the detail

Start here

Which ute is yours?

Pick it once and the rest of the page is written for that platform - the weights, the sensors and the photos.

Platform not listed? We fit more than what's here.

Ask about fitment

Your platform

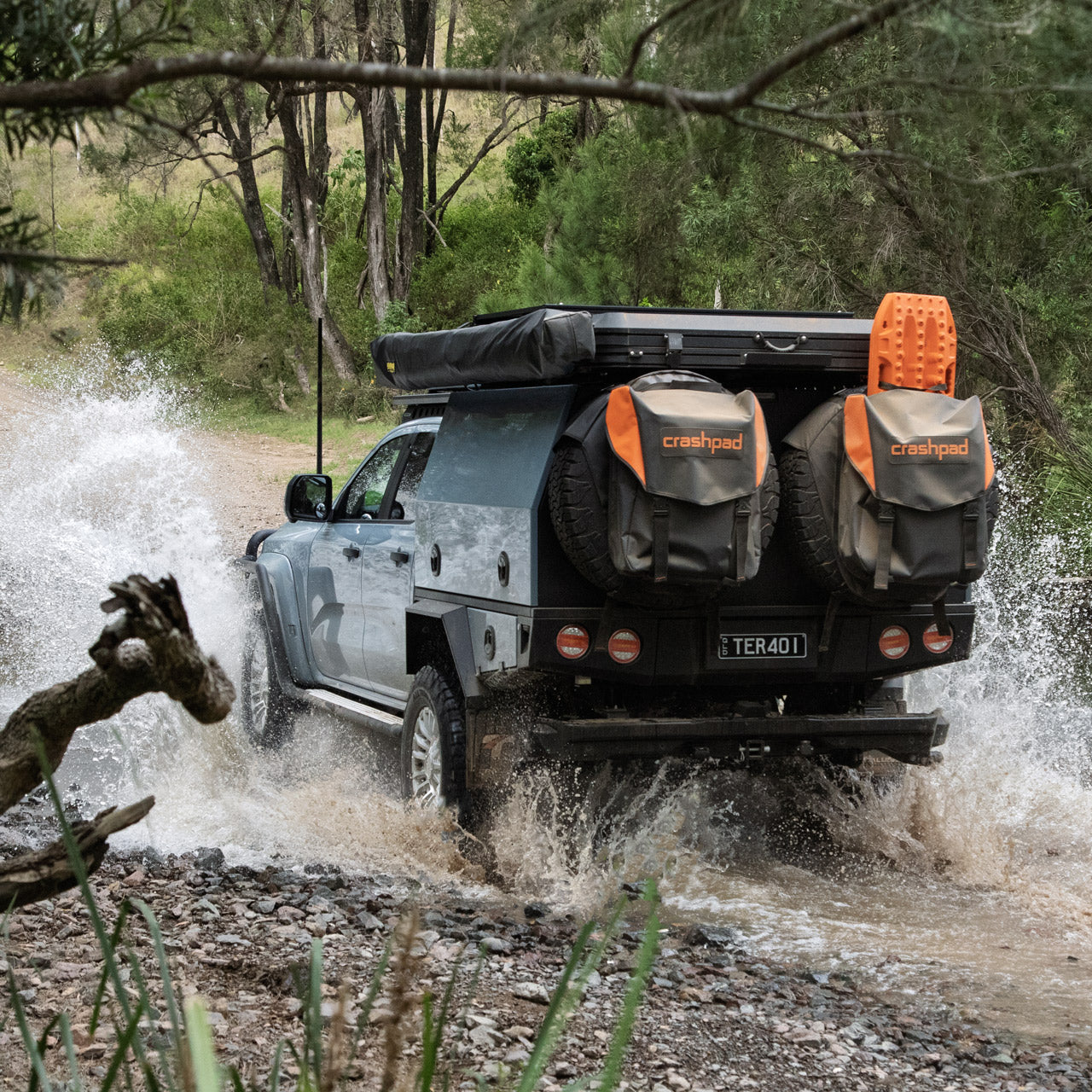

An XGO build on the Ford Ranger Super Duty.

Your uteFord Ranger Super DutyChange

Platform shotTOURING build on this vehicle - at camp, doors and drawers open. 4:3.

Swipe for more

The platform we build for most. The tub comes off, the tray goes on and the camera and sensors move across in the same fit.

Cameras and sensors

Reverse camera relocatedYes
Rear park sensors retainedYes
Blind spot monitoring retainedYes
Tow and trailer moduleYes

Sensors & Camera Details Are Vehicle Dependent.

your Payload

Every Kilogram matters

On your Ford Ranger Super Duty.

GVM4500kg

Kerb weight2380kg

Payload allowance2120kg

XGO Tray + Canopy320kg

Left for you and your gear

1800kg

XGO BuildRemaining Payload

Swap builds above to see what each one leaves you.

That build puts this platform over its GVM. We would spec you a lighter one, or talk to you about a GVM upgrade - not sell you this and hope.

Weights Can Vary From Vehicle to Vehicle.

Designed, engineered, guaranteed

Enormous strength, backed for 10 years

10 years means 10 years. From the day it’s fitted, the structure is backed by Teralume. No short-term warranty dressed up as confidence. We engineered it, we built it and we stand behind it.

SkinnedStructural Frame

1 GVM & PayloadDesigned to ensure shear load and dynamic loads exceed the expectation and compliance of the vehicle's factory payload rating.

2 SafetyDesigned around occupant and road safety, with secure load retention, controlled weight distribution and structural stability under dynamic loads.

3 Fully TIG Welded StructureBuilt as one complete body, creating a stronger and more rigid structure without relying on rivets, adhesives or bolt-together construction.

4 Chassis-Rail MountingEngineered to spread load through the chassis rails, delivering up to 4.7x the strength of traditional mounting systems.

5 Fully Structural SubframeA fully engineered frame supports the complete floor and body, reducing flex, movement and fatigue under load.

6 Continuous Load PathsLoads are spread through the entire structure instead of being concentrated into isolated high-stress points.

7 Reinforced High-Stress ZonesMounting points, corners and load-bearing areas are strengthened to handle repeated vibration, twisting and heavy use.

8 Engineered for Fatigue ResistanceDesigned to withstand years of vibration, chassis movement and repeated loading without compromising structural integrity.

XGO 12V

Internal Fitout

Designed as One System | Nothing is added as an afterthought. Storage, power, lighting, refrigeration and accessories are designed to work together, giving you a fitout that feels integrated, uses space properly and simply works.

Power bayBattery, DC-DC, breakers, labelled loom. Tidy cable runs are the hero. 4:3.

Lithium Power SystemRanging from 120ah to 460ah, our industry first all in power system offers charging, 240v and power outlets all in one unit.
Solar & Vehicle ChargingSolar and vehicle charging work together to keep the system topped up whether you’re driving, parked or set up at camp.
Drawers & StoragePart of your canopy setup is to have more space and make sure everything has a home. Organised, functional and easy to use.
Water & LightingOnboard water with a pump, lighting where you need and power outlets for cooking appliances and 12v charging are all considered.

Two weeks, start to finish.

Want To Watch one get built?

Australia’s first end-to-end lifestyle build on the new Ford Ranger Super Duty. Our team is highly experienced in building serious expedition vehicles, from tray and canopy through to suspension, power, storage, lighting and complete vehicle integration.

Standard means standard

standard Inclusions

Water storage, drawers, toolboxes, lighting and hardware are built into the XGO platform as standard, never quoted as extras.

10 year guarantee

10 years of hassle free motoring. We back our structure for 10 years, no matter what you choose to use your vehicle for.

Integrated zone lighting

On each rear corner is a white and amber work light neatly installed to provide light on the ground when you need it most. All at the touch of a button.

Headboard water tank and pump

XGO tooled BPA drinking water tanks are included, with a 6lph Seaflo Pressure Pump

Central Locking

Solid state electric whale tail locks are installed on all main doors as standard and will operate when you lock the vehicle

Lockable under-tray toolboxes

Extra storage is available with rear tapered toolboxes. Properly sealed with special washers and automotive quality seals.

Rear trundle drawer

1100mm of extra space is neatly concealed under the main floor with a dual locking system. Most people don't even know its there!

Height adjustable doors

If you're installing roof mounted accessories or blessed with being a shorter person, fully height adjustable doors are standard.

Flush floor system

All trays and canopies have a integrated flush floor system. No need to build up the floor inside anymore!

Channel mounting system

Every accessory has been designed to install without drilling holes. You can now change your fit out as many times as you wish.

Fuel filling system

Enjoy filling up with a click free filling system. Specially designed vented fuel neck allows splash and click free fueling.

Exact inclusions vary by platform and configuration.

Get your build specified

Specifications

if you like specs?

The complete picture, clearly laid out.

Body

Construction: Stitch & Seam Welded with Laser & TIG Welders. 5052 Aluminium with 6mm Aluminum Main Chassis & 3mm Internal Frame / 4mm Proprietary Extrusion Edge Frame
Sheet and Extrusion: 5052 Aluminium, 2.5mm sheet & 2.5mm 50x50mm Proprietary Channel Extrusion
Doors: 5052 Aluminium Sheet 2.5mm - Fully Stitch Weld Bracing Inside
Seals: Automotive Pinchweld
Hardware: 304 & 316 Stainless Steel
Finish: Polyester UV Stabilised Automotive Powder

Mounting

Method: Chassis-Rail Subframe with 6x M12 HT Bolts (Vehicle Chassis) & 12x M12 HT Bolts (XGO Chassis)
Torque: 100NM

Weight

Tray: 282kg Dry
Chassis Mount Canopy: From 330KG Dry
With Fitout: 600KG +

Lighting

Tail Lights: 4x 125mm Round LED with Sequential Indicator (Park/Stop/Rev/Ind)
Zone Lights: Teralume Industries X1 Tri Colour

Water

Tank capacity: 22L (Headboard) 58L (S) / 78L (L) - Rota Molding Approximation
Pump: Seaflo 6 Litres Per Minute
Hoses: Clear Braided Water Grade Hose
Filling: Tray - Passive & Chassis Mount Canopy - Pressure
Outlets: Moulded Brass
Tank Material: BPA Free Poly
Tank Brand: Proprietary XGO Tooled

Guarantee

Structural: 10 Years From Installation
Parts: 5 Years From Installation

The "FROM" Game

Ahh, The 'From' Price...

We don't play the 'from' game. Our price, is our price - whether you are interested in a tray & canopy or chassis mounted canopy. We don't charge for extra's that really shouldn't be extra!

A typical quote starts lower, then adds water tank, drawers, toolboxes, lighting, hardware and fitment as extras, finishing at nearly double the advertised price. An XGO build includes all six in the quoted price.

A Typical Quote After all the inclusions are finally added $18,665 + Extra's Installation

Nothing to add, its all a standard inclusion $15,990

See what comes standard

What owners say

5.0 across every review.

50+ Verified Google reviews from touring, trade and fleet customers around the country. Here Are Some

I looked at a lot of different canopy manufacturers around Brisbane, but I keep coming back to Teralume. The team couldn’t have been more helpful; from spending time with me at the various 4x4 shows to walking me through the process at their Brendale facility. They worked hand in hand with Bremer Ford when it came to delivery logistics and nothing was too difficult to work through with me as I refined my requirements. I’m so happy with my Chassis Mounted Canopy on my Ranger Super Duty and am now looking forward to fitting it out with my touring setup. Absolutely would recommend Dan and the team at Teralume!

Kakadu RoseRanger Super Duty · Northern Territory

Awesome product at a very fair price, recently drove 12 hours to have a canopy fitted to my Teralume tray at their main workshop in brissy, decided on a couple accessories to be fitted after I turned up and nothing was a hassle, good service, even better product, would recommend to anyone in a heartbeat.

Bradley OwenToyota LC 79 Series · Queensland

AMAZING EXPERIENCE times 2. I first went to Teralume in Jan 2024 after months of researching a canopy for my Amarok. First best decision I made. The team was fantastic then with customer service, attention to detail and good old fashioned service. 12 months on after more research and contemplating going to a different touring shop, I reached out to the team about a battery, inverter and the fun stuff to turn the Amarok from a work ute to a touring ute. Second best decision. Laura, Dan and Josh I can not thank you enough, even when things didn't go to plan you were more than accommodating and are always solution driven even if its at your expense. Quality products, amazing service and all round great people. I will be back for a third visit once I can work out what else I can put on the ute.

Jade CloseNF Amarok · Queensland

Brendale, Brisbane

Come and look at one.

We don't expect you to commit to a $30,000 build off a website. Our workshop is 25 minutes north of the CBD - come and open the doors on a finished setup.

WorkshopWide shot of the Brendale floor with finished builds in frame. Real, lit, tidy. 4:3.

40 Griffin Crescent
Brendale QLD 4500

OpenMon–Fri, 8.30am-4pm

From the CBDAbout 25 minutes north

Get directions Call Us

See a finished build, not a render
Talk to the people who drew it
Get your ute measured while you're here

Not local? We also fit through a national network - put your postcode in the enquiry and we'll name your closest fitter.

Teralume Industries is the company behind the XGO™ brand. XGO™ is our range of trays, canopies and integrated 12V systems, designed and installed by our team from our Brendale facility. Together, Teralume and XGO™ deliver complete vehicle systems with the engineering, fitment and support all under one roof.

Straight answers

Before you ask.

Why Do Others Offer A "From" Price?

A “from” price gets you in the door, then the extras start adding up. That’s not how we do business. We’d rather show you what a properly equipped XGO™ system actually costs from the start - clear, upfront and without the surprises.

Which Build Do I Need?

That’s exactly what our team is here to work out. We start by understanding what you need the vehicle to do, then work backwards from there. We’ll help you decide what matters, what doesn’t and what will actually add value to your build. No unnecessary extras, no pushing you down the wrong path - just the right setup for how you’ll use the vehicle. We're very good at it!

What Does the 10-Year Guarantee Cover?

The 10-year guarantee covers the structural integrity of the tray and canopy from the date of fitment. If the structure cracks, fails or breaks due to a structural defect, we’ll cover it. It applies to the structure itself, not coatings, hardware, accessories or general wear and tear.

Will This Put Me Over GVM?

In most cases, a moderate XGO™ setup won’t put the vehicle over GVM. The bigger consideration is everything else added to the vehicle. A factory tub can weigh 180 kg or more and a typical XGO™ setup may add around 330 kg, so the actual net increase can be relatively small. We look at the complete vehicle build, not just the tray and canopy, to make sure weight is considered properly.

How Long From Ordering to Installation?

Most XGO™ builds are ready for installation within 3-4 weeks of ordering. Timing can vary depending on the vehicle, build specification and current production schedule, but our team will confirm the expected timeframe before your build is locked in.

Can I Come And See Your Showroom?

Yes and we'd rather you did! We're at 40 Griffin Crescent, Brendale, open 8.30am to 4pm weekdays.

How Long Does Fitting Take?

Most XGO™ builds take one to two days to fit at our Brendale facility. It depends on the complexity of the build, but our installation system is designed to be efficient, straightforward and repeatable.

I'm Not in Brisbane. Can You Still Help Me?

Yes. We fit XGO™ systems through our national dealer and fitting network as well as at our Brendale facility. Our team can quote and organise your complete build, then send you to your nearest dealer for installation. Add your postcode to the enquiry, or visit our Find a Dealer page to see your closest location.
